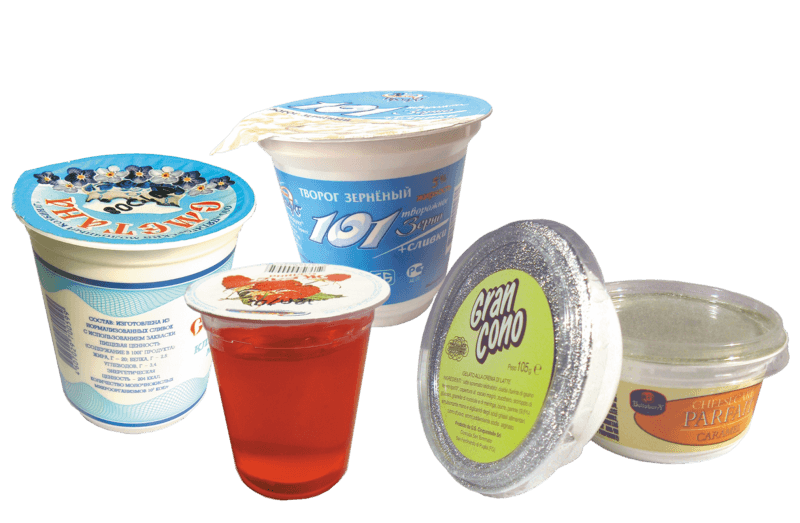

The machine is designed for the filling of liquid and paste-like products in pre-formed plastic cups and containers of various shapes with sealing of pre-cut aluminum foil lids and capping with a plastic lid. Four row machine is small in size with high productivity for one machine-man.

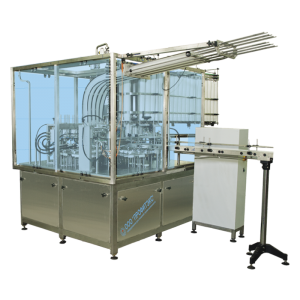

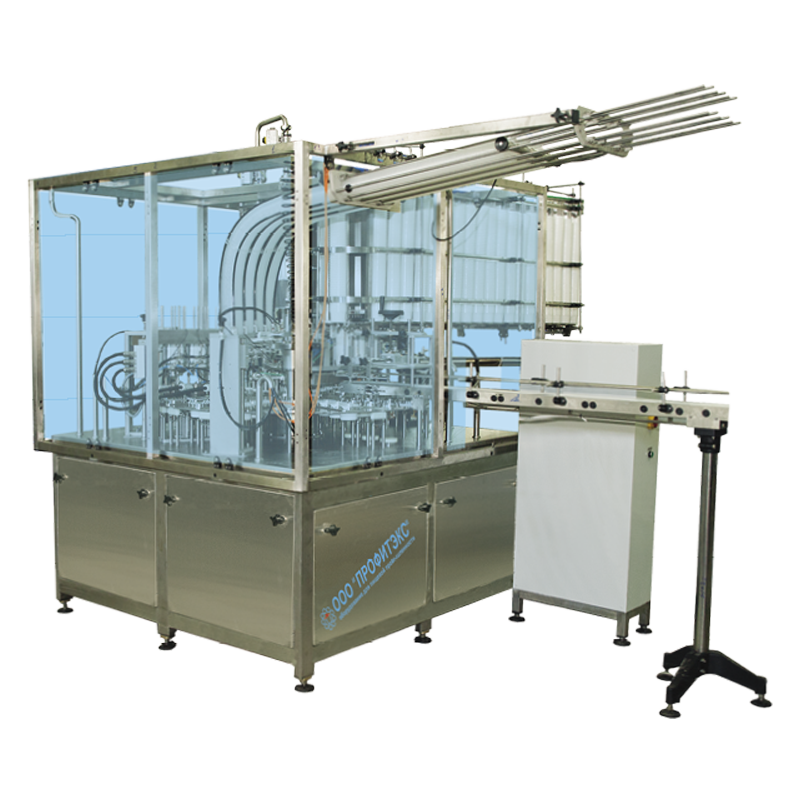

Four-lane rotary filling machine


Technical data

Output with product: up to 8000 cups/hour
Servo drive
Dimensions (without conveyors): 1500*1500*2800 mm
Weight: 1200 kg
Power supply: 380V, 50 Hz
Power consumption: 2 kW
Air-pressure: 0.6 MPa
Сompressed air consumption: no more 700-800 liters/min


Connection to CIP
Automatic feeding of cups
Automatic feeding of lids
Automatic adjustment of fillers
Cleanup system
Station of cup overturn (for processed cheese)
Rotary table for final assembly (1200 mm)


High productivity
Vacuum-compensator (to prevent swelling of aluminium lids)
High quality sealing of pre-cut aluminium lids (tubular coiled heating element)
