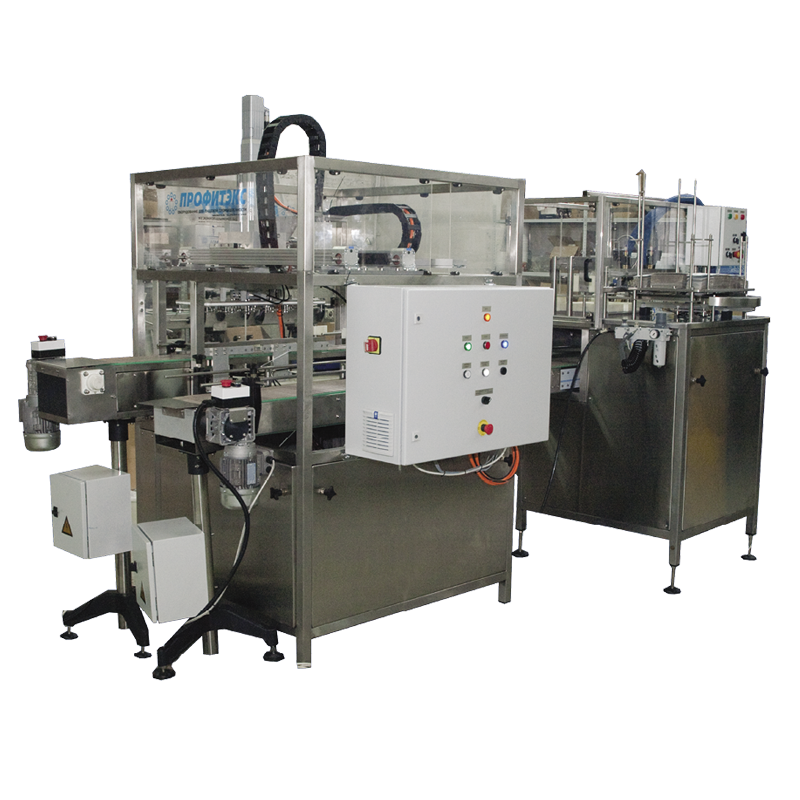

The line is designed for multipack plastic cups in cardboard box-tray (Shelf Ready Packaging). The line includes fully automatic tray former and tray packer with gripper system. Dimensions of tray is customized for each order.

Description of the equipment:

Tray former folds and forms a self-locking trays. Next, the tray moves along the conveyor. Gripper system pick up filling cups from the conveyor and puts the cups into the carton tray. Then the tray with product going from conveyer to palletizer.



Tray former



Technical data

Output up to 1500 trays/hour
Dimensions (without conveyors):6000*1000*2500 mm
Weight: 650 kg
Power supply: 220-240V, 50 Hz
Power consumption: 1.2 kW
Air-pressure: 0.6 MPa
Сompressed air consumption: 350 liters/min
